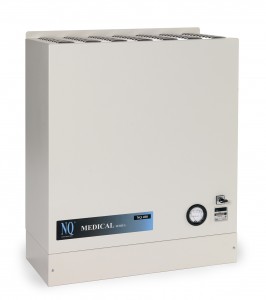

NQ 250-400 a wall-mounted air purification systems

The patented technology of these products confirms their uniqueness. It constantly produces purified and sanitized air, with a uniform optimization of air flow and air volume within the entire room.

Consisting of 2 levels of mechanical filtration as well as an ultraviolet purification zone that destroys bacteria, viruses, fungi and molds. Units dimensions make these equipments ideal for several applications such as commercial, medical, industrial or military settings

Efficacy proven in real conditions for over 10 years (references available on request).

The ultraviolet disinfection allows our units to offer a high protection without utilizing any chemicals or added materials.

• Installed on the wall, quickly deployed.
• Autonomous.
• Positive or negative pressure possible.
• System utilizing recognised processes.
• Low Maintenance.
• Fraction of the cost of permanent isolation room.

FILTRATION – Four stages of mechanical filtration:

• 1 Pre-filter of 102 mm – 25-30% ASHRAE – G4

• HEPA filter ASHRAE- H14 (99.99% at 0.3 µm) – DOP

UV DISINFECTION – Two or four germicidal UV lamps providing a total UV dosage of 13,000 to 26,000 µWsec/cm² to inactivate micro-organisms

Working Principle:

The top of the unit installed at 1.98 m above floor level creates a complete mixing pattern. The unit sends clean air to the upper part of the room, forcing heavier particles and droplet nuclei down away from breathing zone and into unit’s inlet.

Details

• The air is recirculated into the bottom part of the machine
• Larger particles are trapped into the pre-filter (G4 – 25-30% ASHRAE)
• The air then passes through the UVGI (UV germicidal irradiation) chamber, a highly effective germicide, that destroys virus, bacteria, fungi and molds
• Finally 99.97% of particles and micro-organisms > 0.3 µm are filtered by the HEPA filter H14. This filter is constantly bathed by UV lamps. As the filter traps only micro-organisms that have been destroyed by UVC’s, there is no risk of replication in case of the unit is switched off
• Purified air is discharged, in the top part of the unit, via a discharge system specially designed (“Upflow”) to maximize and optimize the room effective air change rate

Technical features:

Height	32’’ – 810 mm
Width	26’’ – 660 mm
Depth	13’’ – 330 mm
Weight	95 lbs – 43.2 kg
Power supply	115 V – 60 Hz / 230 V – 50 Hz
Power	NQ 250 – 138 Watts (high speed) NQ 400 – 276 Watts (high speed
Air volume	NQ 250 – 250 cfm – 118 l/s – 425 m³/h NQ 400 – 400 cfm – 189 l/s – 680 m³/h
Noise Level	NQ 250 – 48 dBA – (high speed) NQ 400 – 53 dBA – (high speed)
Hour meter	Up to 99,999 hours
Pressure gauge	0 to 1 inches WC – 250 Pa
Pre-filter	4“- 102 mm / 30% ASHRAE – G4*
HEPA filter	12’’ – 305 mm – H14** – ASHRE – DOP – 99,99% > 0.3 µm
UV zone	2 lamps of 22’’ – 559 mm – 24,954 microwatt on high and 38,668 on low
UV dosage	NQ 250 – 19,334 µWsec/cm² NQ 400 – 12,447 µWsec/cm²

* According to EN 779 **According to EN 1822

Maintenance required

Pre-filters	2 to 4 months for 4″ – 102 mm pre-filter
HEPA filter	28 months max. (18 months recommended)
UVGI lamps	Every 9,000 hours

Options:

• Inlet plenum to create positive pressure within the room
• Negative pressure top to create negative or positive pressure
• Activated carbon installed instead of HEPA filter or instead of the G4 Pre-filter to suit specific applications
• Photocatalysis arrangement

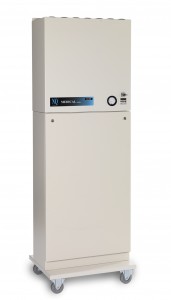

NQ 500 air purification system

The patented technology of this product confirms its uniqueness. It constantly produces purified and sanitized air, with a uniform optimization of air flow and air volume within the entire room.

Consisting of 3 levels of mechanical filtration as well as an ultraviolet purification zone that destroys bacteria, viruses, fungi and molds. Unit size and mobility make this equipment ideal for several applications such as commercial, medical, industrial or military settings Efficacy proven in real conditions for over 10 years (references available on request).

The ultraviolet disinfection allows our units to offer a high protection without utilizing any chemicals or added materials.

• High efficiency 99.99% HEPA
• Mobile, quickly deployed
• Autonomous
• Positive or negative pressure possible
• System utilising recognised processes
• Low Maintenance
• Fraction of the cost of permanent isolation room

FILTRATION – Four stages of mechanical filtration:

• 2 Pre-filters of 51 and 102 mm – 25-30% – G4
• HEPA filter ASHRAE- H14 (99.99% at 0.3 µm) – DOP

UV DISINFECTION – Three germicidal UV lamps providing a total UV dosage of 58,100 µW sec/cm²

Working Principle:

A Complete mixing pattern is created as a 1.94 m height unit sends clean air to the upper part of the room, forcing heavier particles and droplet nuclei down away from breathing zone and into unit’s inlet.

Details

• The air is recirculated into the bottom part of the machine
• Larger particles are trapped into the 2 stages of the pre-filters (25-30% ASHRAE) that are constantly bathed by UV lamps
• The air then passes through the UVGI (UV germicidal irradiation) chamber, a highly effective germicide, that destroys virus, bacteria, fungi and molds
• Finally 99.99% of particles and micro-organisms > 0.3 µm are filtered by the HEPA filter H14. As the filter traps only micro-organisms that have been destroyed by UVC’s, there is no risk of replication in case of the unit is switched off
• Purified air is discharged, in the top part of the unit, via a discharge system specially designed (“Upflow”) to maximize and optimize the room effective air change rate

Technical features:

Height	78’’ – 1940 mm
Width	26’’ – 660 mm
Depth	13’’ – 330 mm
Weight	184 lbs – 83.5 kg
Power supply	115 V – 60 Hz / 230 V – 50 Hz
Power	437 Watts (high speed)
Air volume	500 cfm – 236 l/s – 850 m³/h
Noise Level	55 dBA – (high speed)
Hour meter	Up to 99,999 hours
Pressure gauge	0 to 1 inches WC – 250 Pa
Pre-filter 1	2“- 51 mm / 30% ASHRAE – G4*
Pre-filter 2	4“- 102 mm / 30% ASHRAE – G4*
HEPA filter	12’’ – 305 mm – H14** – ASHRE – DOP – 99,99% > 0.3 µm
UV zone	3 lamps of 36’’ – 915 mm
UV dosage	58,100 µWsec/cm²

* According to EN 779 **According to EN 1822

Maintenance required

Pre-filters	3 months for 2’’ – 51 mm pre-filter 6 months for 4’’ – 102 mm pre-filter
HEPA filter	24 months max. (18 months recommended)
UVGI lamps	Every 9,000 hours

Options:

• Inlet plenum to create positive pressure within the room

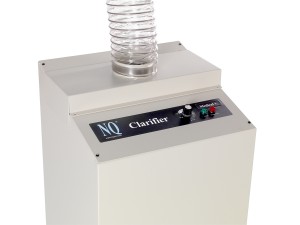

• Negative pressure top to create negative or positive pressure
• Activated carbon installed instead of UV lamps or instead of the 2nd G4 Pre-filter to suit specific applications
• Photocatalysis arrangement

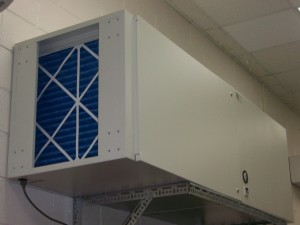

NQ 360 – 720 a ceiling-mounted air decontamination units

NQ ceiling units are designed as ceiling-mounted air decontamination units, designed to run as a supplement to or with the existing airflow of the air conditioning system. In other words, these systems can be used as a recirculation air purifier within the same room/corridor or ducted to the existing HVAC system.

The patented technology of these products confirms their uniqueness. It constantly produces purified and sanitized air, with a uniform optimization of air flow and air volume within the entire room.

Consisting of 2 levels of mechanical filtration as well as an ultraviolet purification zone that destroys bacteria, viruses, fungi and molds. Units dimensions make these equipments ideal for several applications such as commercial, medical, industrial or military settings.

Efficacy proven in real conditions for over 10 years (references available on request). The ultraviolet disinfection allows our units to offer a high protection without utilizing any chemicals or added materials.

• High efficiency 99.99% ULPA
• Ceiling mounted, quickly deployed
• Autonomous
• Positive pressure possible
• System utilising recognised processes
• Low Maintenance
• Fraction of the cost of permanent isolation room

FILTRATION – Three stages of mechanical filtration :

• 1 Pre-filters of 25 mm – 25-30% – G4
• ULPA filter ASHRAE- U15 (99.99% at 0.3 µm) – DOP

UV DISINFECTION – Two to four germicidal UV lamps providing a total UV dosage of 4,945 to 11,865 µW sec/cm²

Working Principle:

• The air is supplied directly from the HVAC systems or from its recirculating inlet grille that can be added as an option (defined upon applications)
• Larger particles are trapped into the pre-filter (25-30% ASHRAE) that is constantly bathed by UV lamps
• The air then passes through the UVGI (UV germicidal irradiation) chamber, a highly effective germicide, that destroys virus, bacteria, fungi and molds
• Finally 99.99% of particles and micro-organisms > 0.3 µm are filtered by the ULPA filter U15. As the filter traps only micro-organisms that have been destroyed by UVC’s, there is no risk of replication in case of the unit is switched off
• Purified air is discharged directly into the room from the ceiling to the floor

Technical features:

Height	14.25’’ – 362 mm
Width	23.5’’ – 597 mm
Depth	NQ 360 – 23.5’’ – 597 mm NQ 720 – 47.5’’ – 1207 mm
Weight	NQ 360 – 35.25 lbs – 16 kg NQ 720 – 59.5 lbs – 27 kg
Power supply	115 V – 60 Hz / 230 V – 50 Hz
Power	NQ 320 – 126.5 Watts (high speed) NQ 720 – 253 Watts (high speed)
Air volume	NQ 360 – 360 cfm – 170 l/s – 612 m³/h (high speed) NQ 720 – 720 cfm – 340 l/s – 1224 m³/h (high speed)
Noise Level	NQ 360 – 61 dBA – (high speed) NQ 720 – 65 dBA – (high speed)
Pre-filter	1“- 25 mm / 30% ASHRAE – G4*
ULPA filter	3.5’’ – 89 mm – U15** – ASHRE – DOP – 99,99% > 0.3 µm
UV zone	NQ 369 – 2 lamps of 22’’ – 559 mm NQ 720 – 4 lamps of 22’’ – 559 mm
UV dosage	NQ 360 – 4,945 µWsec/cm² NQ 720 – 11,865 µWsec/cm²

* According to EN 779 **According to EN 1822

Maintenance required

Pre-filter	2 to 4 months for 1’’ – 25 mm pre-filter
ULPA filter	12 months max.
UVGI lamps	1 year

Options:

• Recirculating kit
• Photocatalysis arrangement

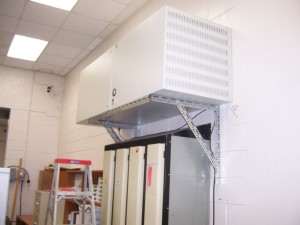

NQ 1000 – 2000 constantly produces purified and sanitized air

The patented technology of these products confirms their uniqueness. It constantly produces purified and sanitized air, with a uniform optimization of air flow and air volume within the entire room.

Consisting of 3 levels of mechanical filtration as well as an ultraviolet purification zone that destroys bacteria, viruses, fungi and molds. Units sizes and mobility make these equipments ideal for several applications such as commercial, medical, industrial or military settings Efficacy proven in real conditions for over 10 years (references available on request).

The ultraviolet disinfection allows our units to offer a high protection without utilizing any chemicals or added materials.

• Mobile, quickly deployed
• Autonomous
• Positive or negative pressure possible
• System utilizing recognised processes
• Low Maintenance
• Fraction of the cost of permanent isolation room

FILTRATION – Three stages of mechanical filtration :

• 2 Pre-filters of 51 and 102 mm – 25-30% – G4
• HEPA filter ASHRAE- H14 (99.99% at 0.3 µm) – DOP

UV DISINFECTION – Six to nine germicidal UV lamps providing a total UV dosage of 73,236 to 92,960 µW sec/cm²

Working Principle:

A Complete mixing pattern is created as a 2.18 m height unit sends clean air to the upper part of the room, forcing heavier particles and droplet nuclei down away from breathing zone and into unit’s inlet.

Details:

• The air is recirculated into the bottom part of the machine
• Larger particles are trapped into the 2 stages of the pre-filters (25-30% ASHRAE) that are constantly bathed by UV lamps
• The air then passes through the UVGI(UV germicidal irradiation) chamber, a highly effective germicide, that destroys virus, bacteria, fungi and molds
• Finally 99.99% of particles and micro-organisms > 0.3 µm are filtered by the HEPA filter H14. As the filter traps only micro-organisms that have been destroyed by UVC’s, there is no risk of replication in case of the unit is switched off
• Purified air is discharged, in the top part of the unit, via a discharge system specially designed (“Upflow”) to maximize and optimize the room effective air change rate

Technical features

Height	86’’ – 2184 mm
Width	26’’ – 660 mm
Depth	26’’ – 660 mm
Weight	184 lbs – 83.5 kg
Power supply	115 V – 60 Hz / 230 V – 50 Hz
Power	NQ 1000 – 1035 Watts (high speed) NQ 2000 – 1840 Watts (high speed)
Air volume	NQ 1000 – 1347 cfm – 636 l/s – 2289 m³/h (high speed) NQ 2000 – 2169 cfm – 1024 l/s – 3686 m³/h (high speed)
Noise level	NQ 1000 – 56 dBA – (high speed) NQ 2000 – 60 dBA – (high speed)
Hour meter	Up to 99,999 hours
Pressure gauge	0 to 2 inches WC – 500 Pa
Pre-filter 1	2“- 51 mm / 30% ASHRAE – G4*
Pre-filter 2	4“- 102 mm / 30% ASHRAE – G4*
HEPA filter	12’’ – 305 mm – H14** – ASHRE – DOP – 99,99% > 0.3 µm
UV zone	NQ 1000 – 6 lamps of 36’’ – 915 mm NQ 2000 – 9 lamps of 36’’ – 915 mm
UV dosage	NQ 1000 – 92,960 µWsec/cm² NQ 2000 – 73,236 µWsec/cm²

* According to EN 779
**According to EN 1822

Maintenance required

Pre-filters	3 months for 2’’ – 51 mm pre-filter 6 months for 4’’ – 102 mm pre-filter
HEPA filter	24 months max. (18 months recommended)
UVGI lamps	Every 9,000 hours

Options:

• Inlet plenum to create positive pressure within the room
• Negative pressure top to create negative or positive pressure
• Activated carbon installed instead of UV lamps or instead of the 2nd G4 Pre-filter to suit specific applications
• Photocatalysis arrangement

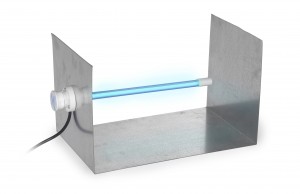

Stab In UVGI Technology
